Square beam with a sloped end

Volumes

A - A square beam with side of 1 m and height of 2 m aligned with the +x axis and slopped at 45 degrees (around Z) at its top end.

Surfaces

1. “fix” base (normal (-1,0,0))

2. “load” slopped end

Mesh

• Target element size: 200.0 mm

• 1 433 elements

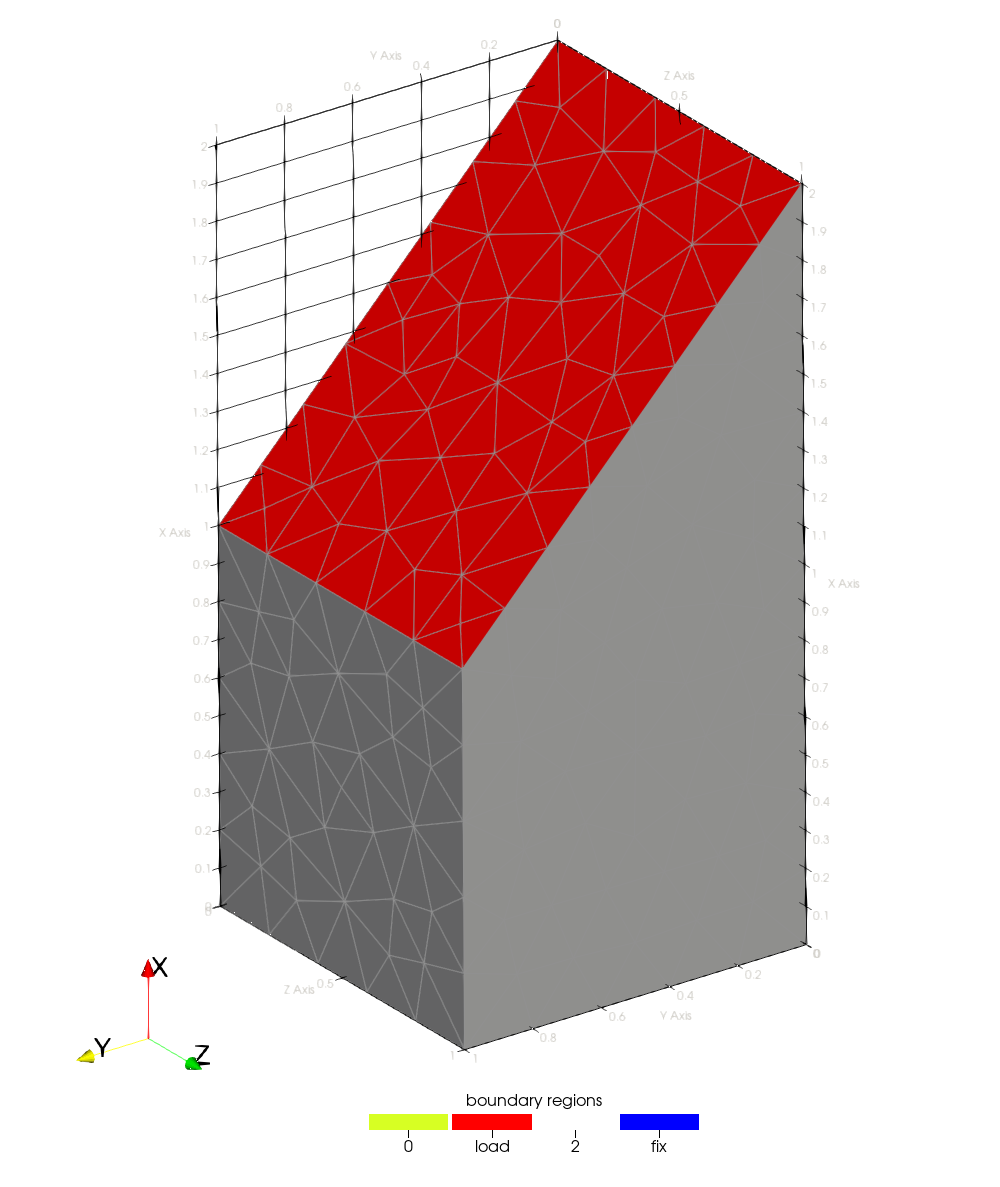

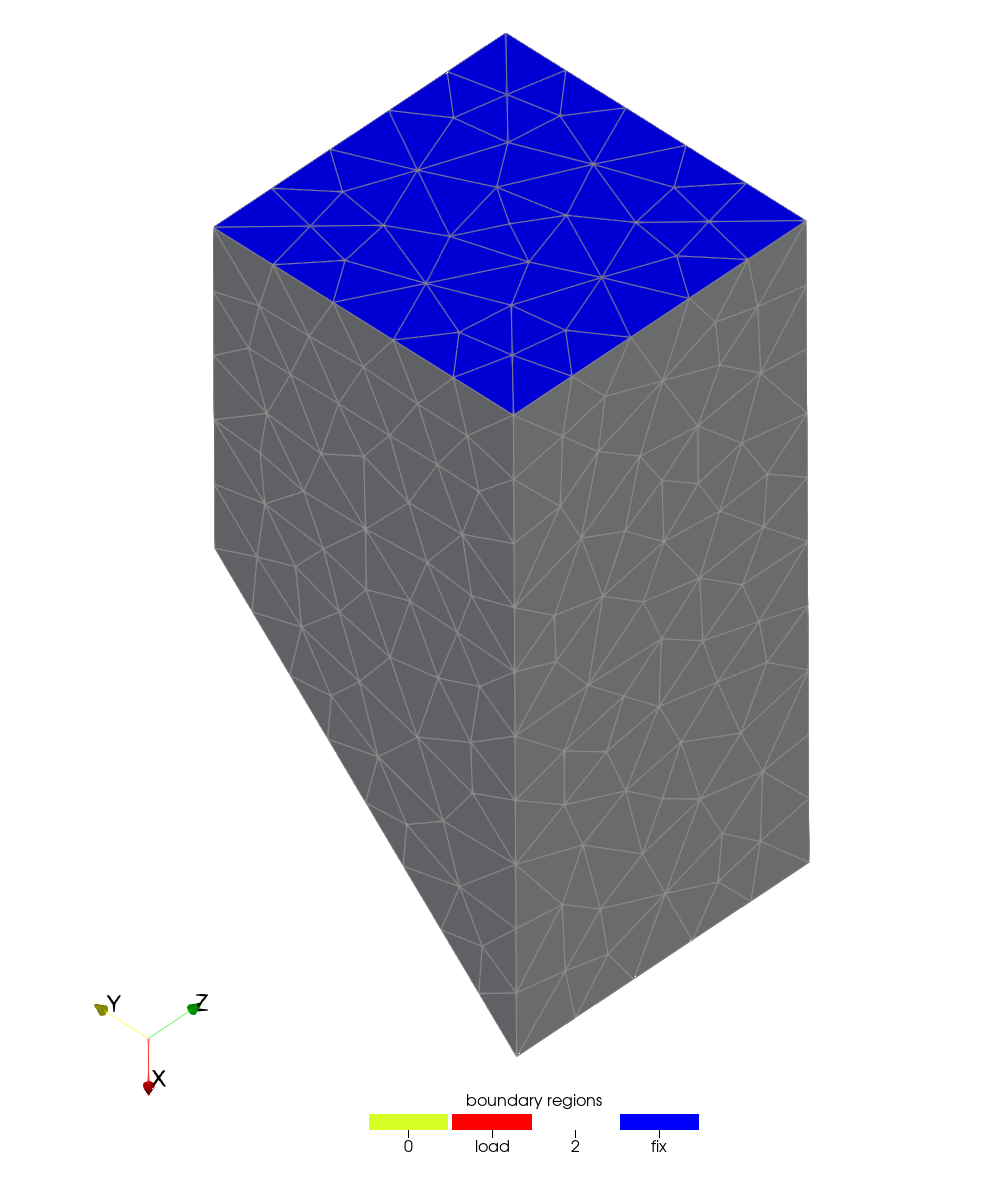

View A	View B
