Aligned wing

Volumes

A - A constant section wing aligned with the +y direction, chord 100 mm, maximum thickness of 25 mm and span 1 m.

Surfaces

1. “fix” root of the wing

2. “load” surface section on the wing top next to the tip

3. “tip” wing flat tip

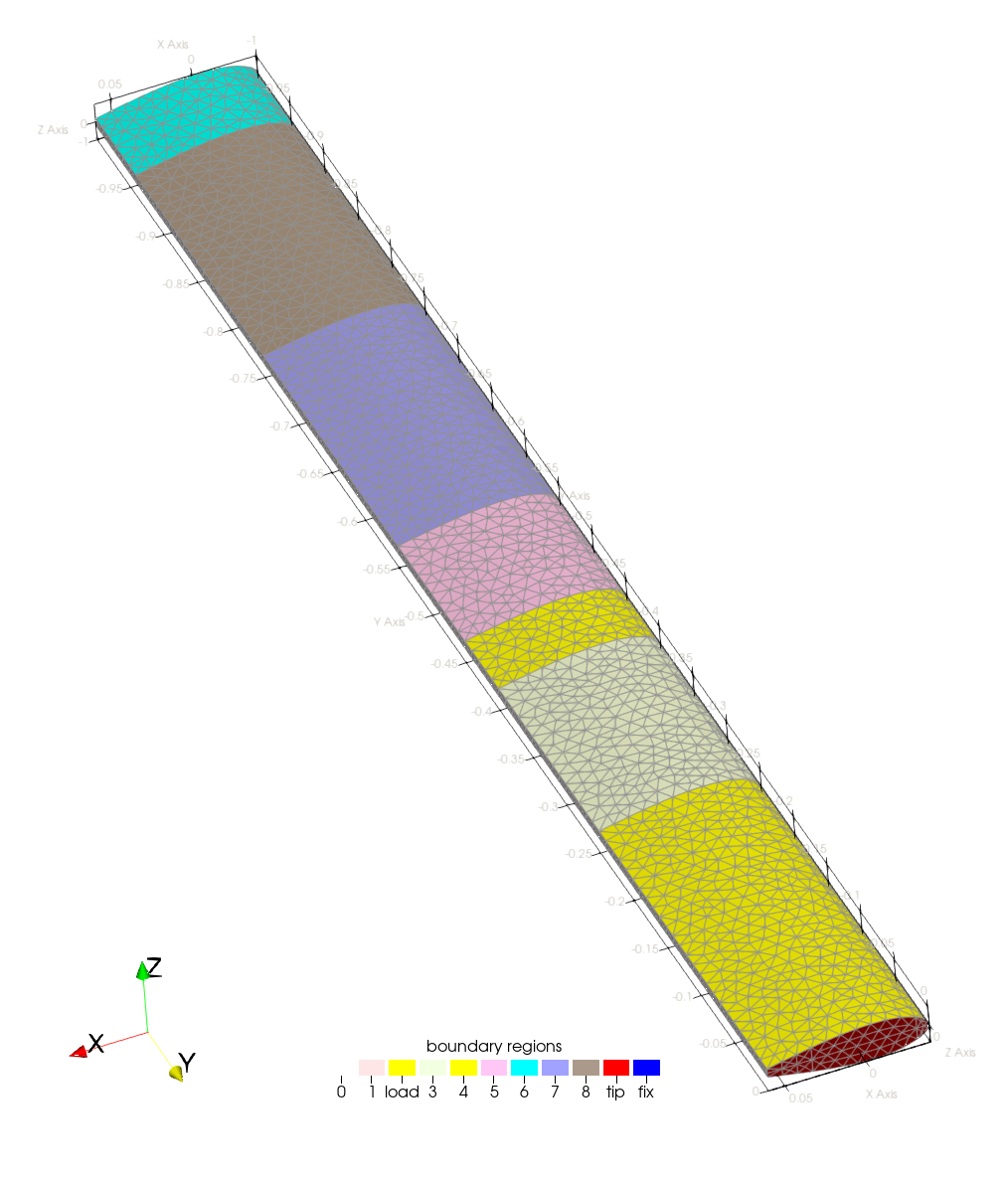

Mesh

• Target element size: 10.0 mm

• Number of elements per circumference: 12

• 2D meshing algorithm: Delaunay

• 15 491 elements

View A	View B
