Square beam with a top cylindrical cavity

Volumes

A - A 1x1x2 m beam with a cylindrical cavity in its end face. The cylindrical cavity has a 0.42426 m radius and 0.4 m height.

Surfaces

1. “cyl” cylindrical cavity side surface

2. “flat_+Y” small surface near the beam tip with normal (0,+1,0)

3. “flat_-Y” small surface near the beam tip with normal (0,-1,0)

4. “flat_+Z” small surface near the beam tip with normal (0,0,+1)

5. “flat_-Z” small surface near the beam tip with normal (0,0,-1)

6. “fix” base

7. “load” beam top (excluding the cylindrical cavity)

Mesh

• Target element size: 100.0 mm

• 9 202 elements

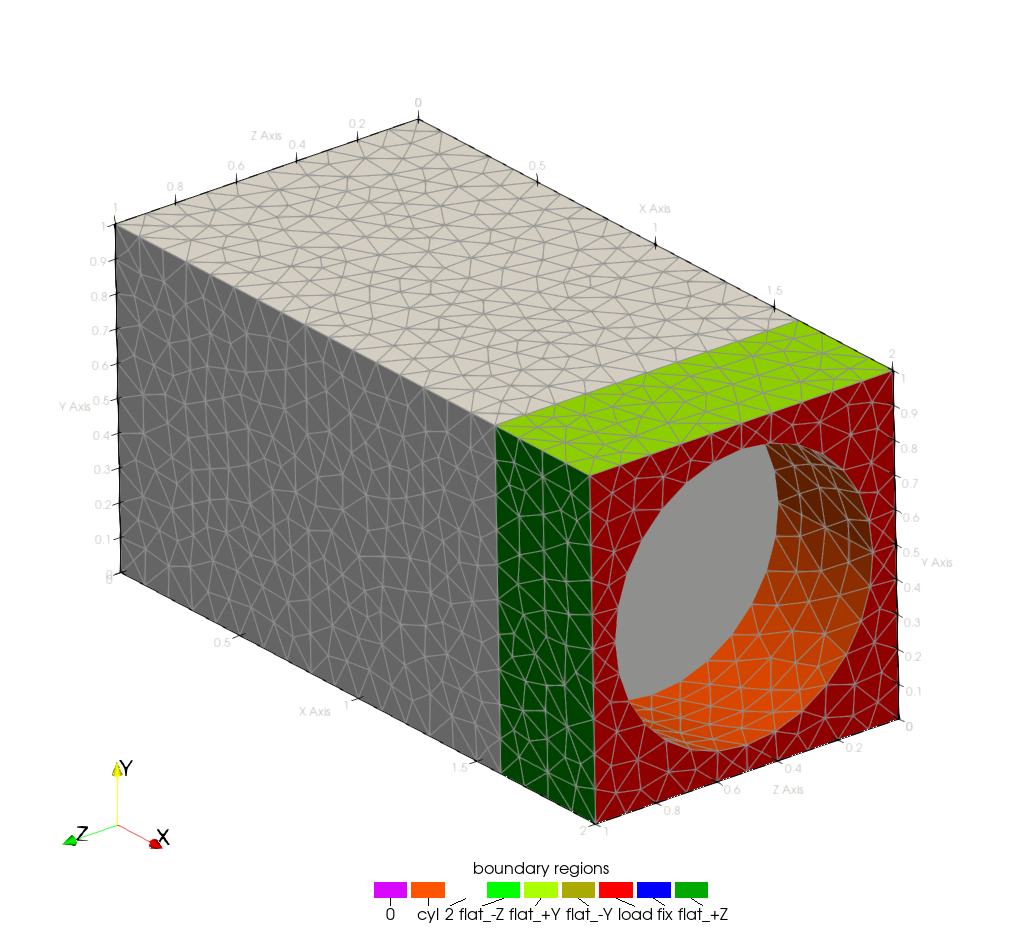

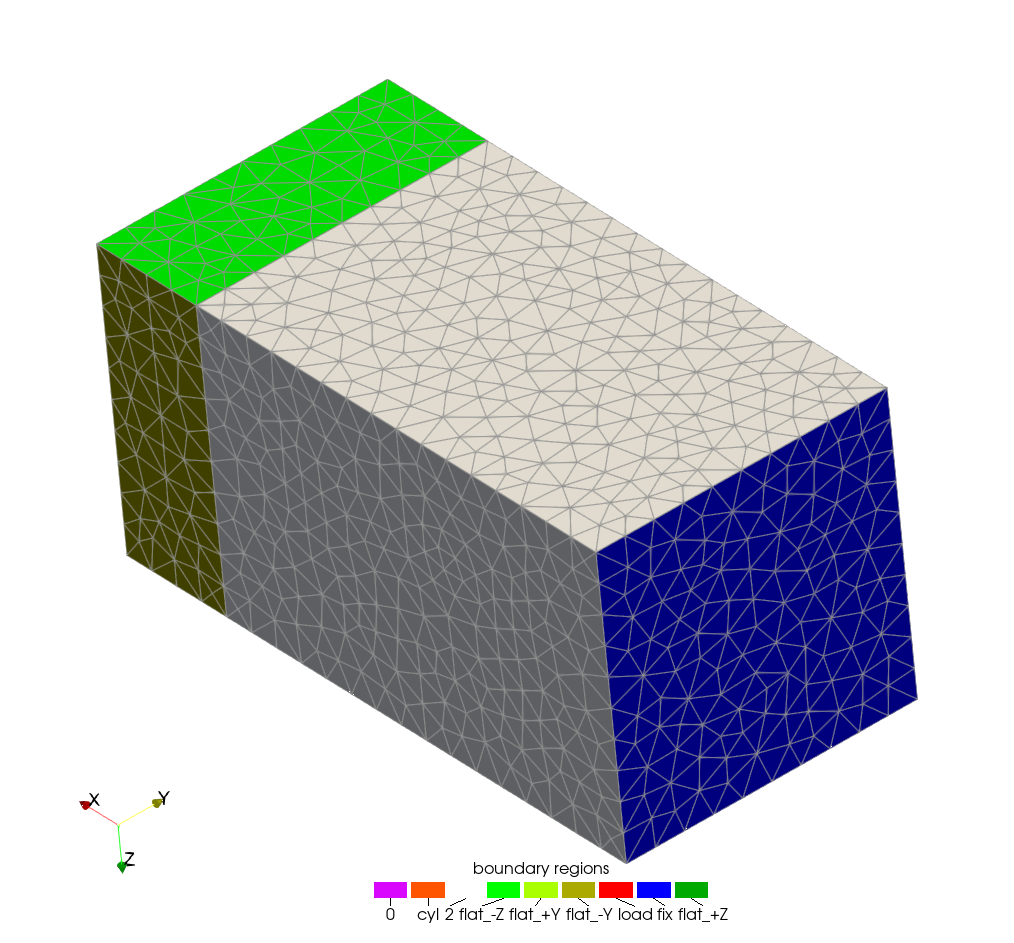

View A	View B
