Square beam with center patches

Volumes

A - A 10x10x40 mm beam with patches at its half length, rotated so that its longitudinal axis is along (1,1,-1). Similar to geometry 0004.

Surfaces

1. “set.1” beam top (+x) red

2. “set.2” beam base (-x) blue

3. “set.3” center patch (+z) purple

4. “set.4” center patch (-z) green

5. “set.5” large center patch (+y) dark green

6. “set.6” large center patch (-y) bright blue

Mesh

• Target element size: 2.5 mm

• 1 941 elements

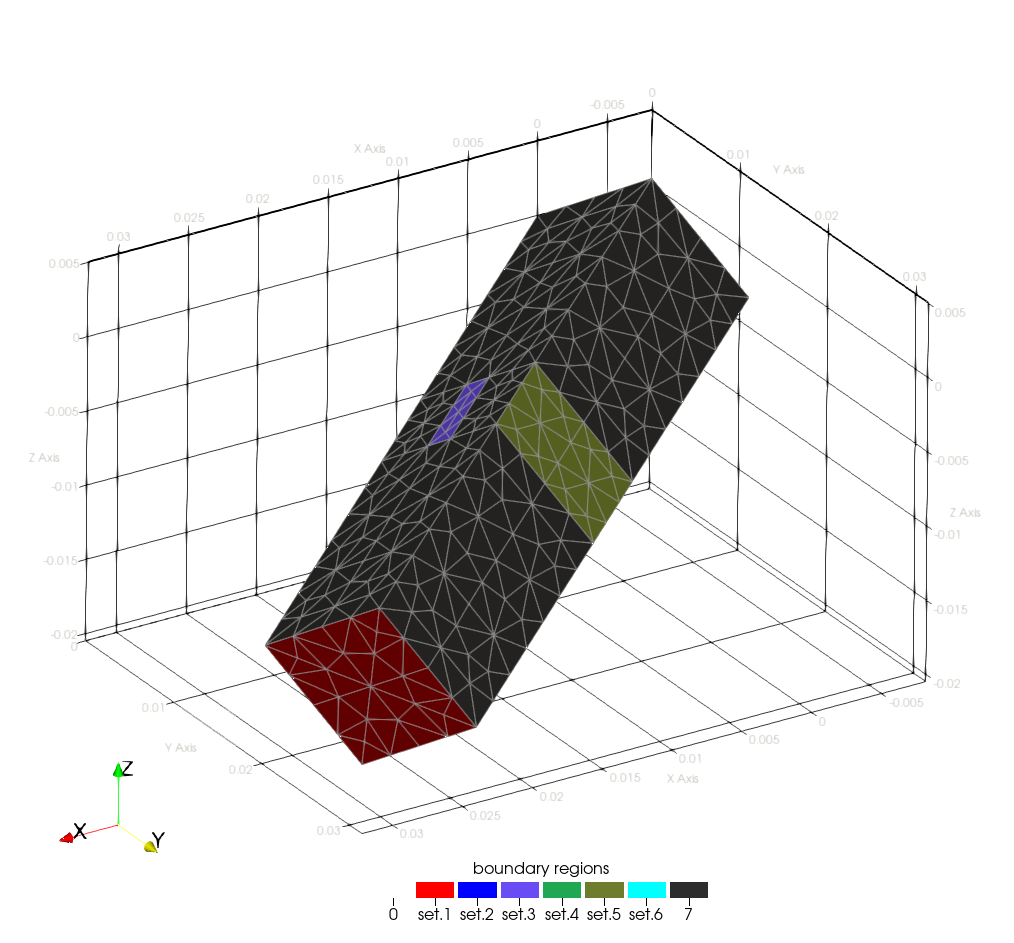

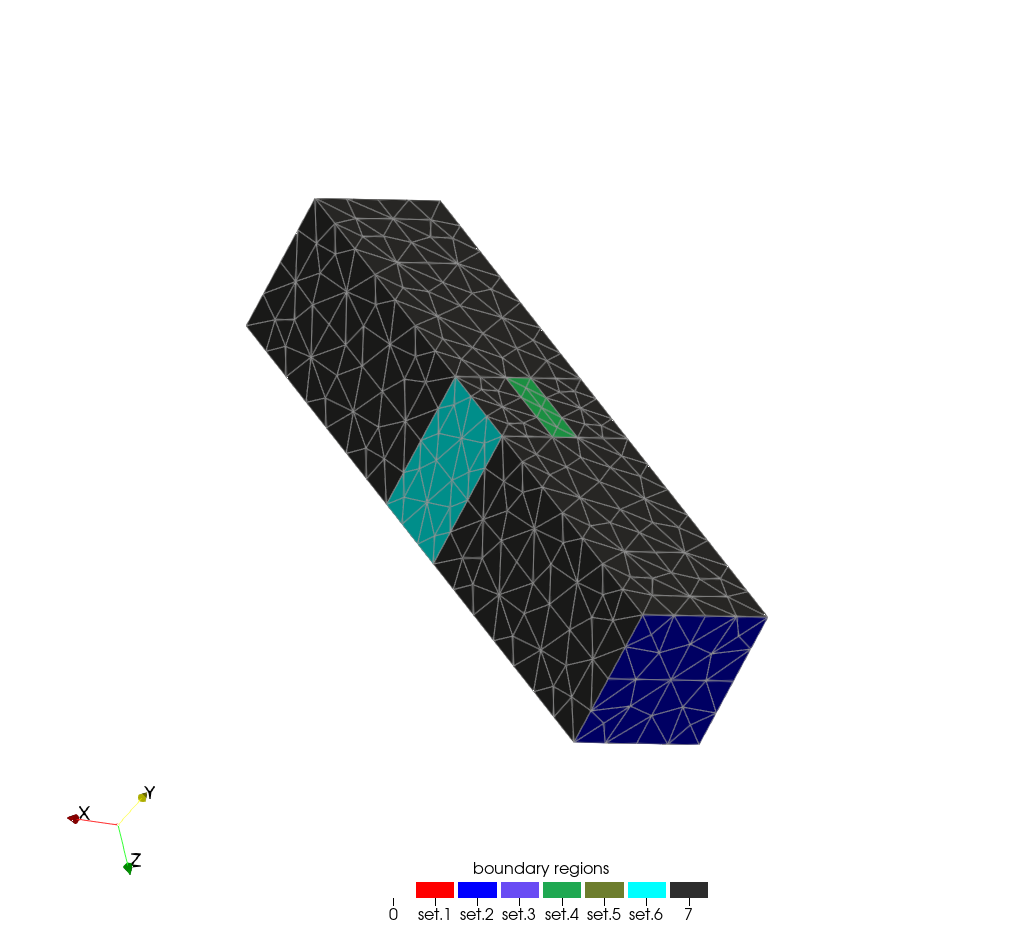

View A	View B
