Square straight beam aligned with the the (1,1,1) direction

Volumes

A - Square straight beam. Square of side 1000 mm and beam height 2000 mm.

Surfaces

1. “fix” base face (-1,-1,-1) blue

2. “load” top face (+1,+1,+1) red

Mesh

• Target element size: 200 mm

• 1676 elements

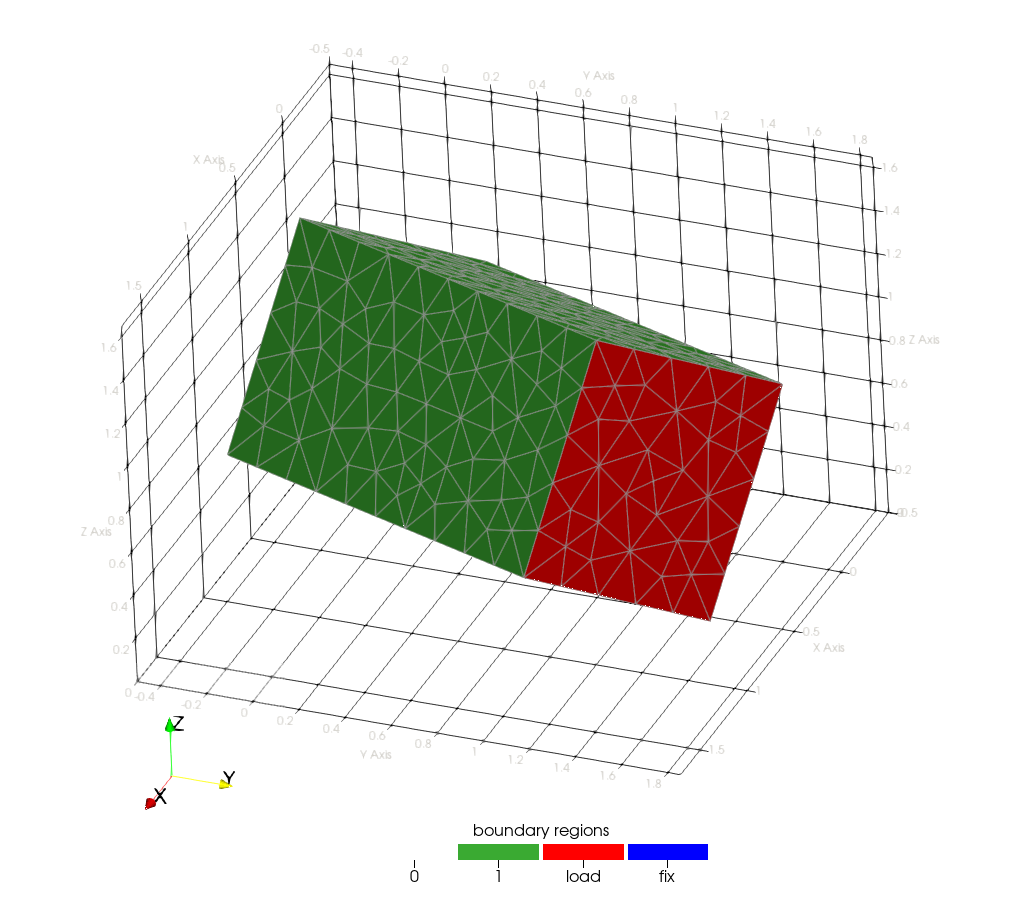

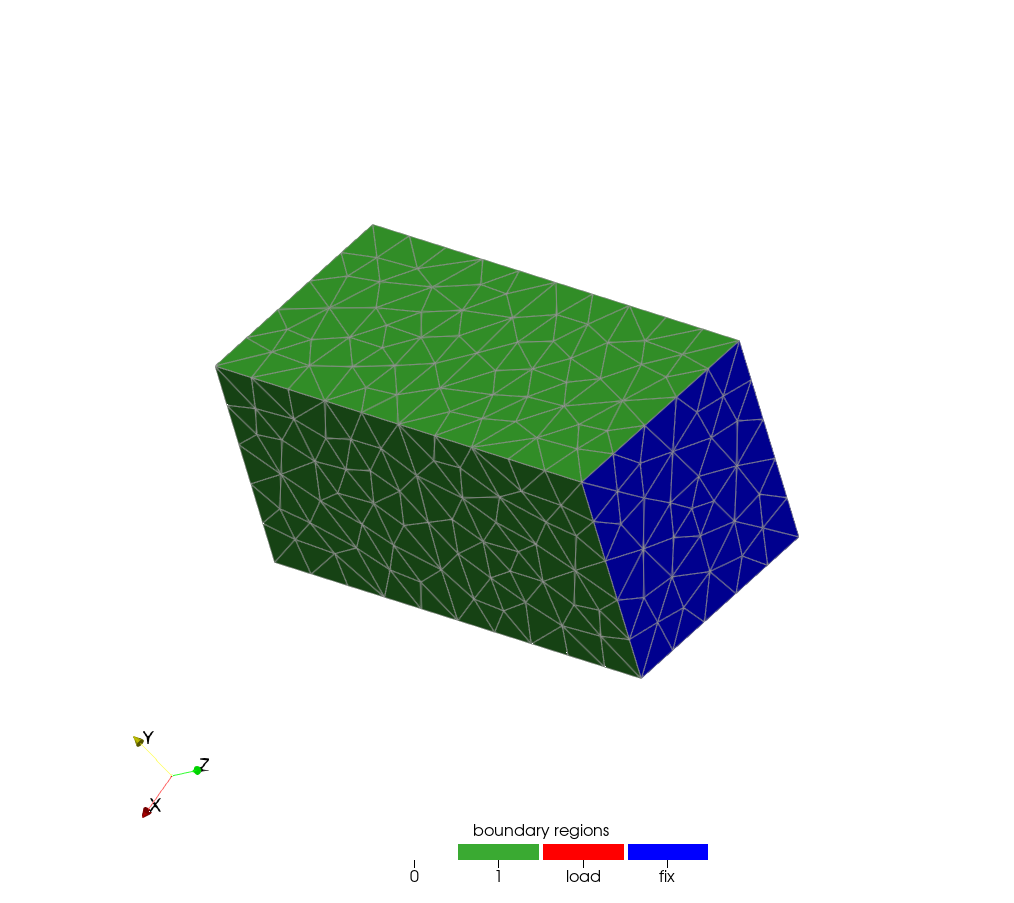

View A	View B
