Circular beam with splined end
Volumes
A - Circular beam with a splined top face. Base area = 10 mm**2, maximum height of 10 mm.
Surfaces
“set.1” beam top red
“set.2” beam base blue
Mesh
Target element quality: 13
Number of elements per circle: 12
10956 elements

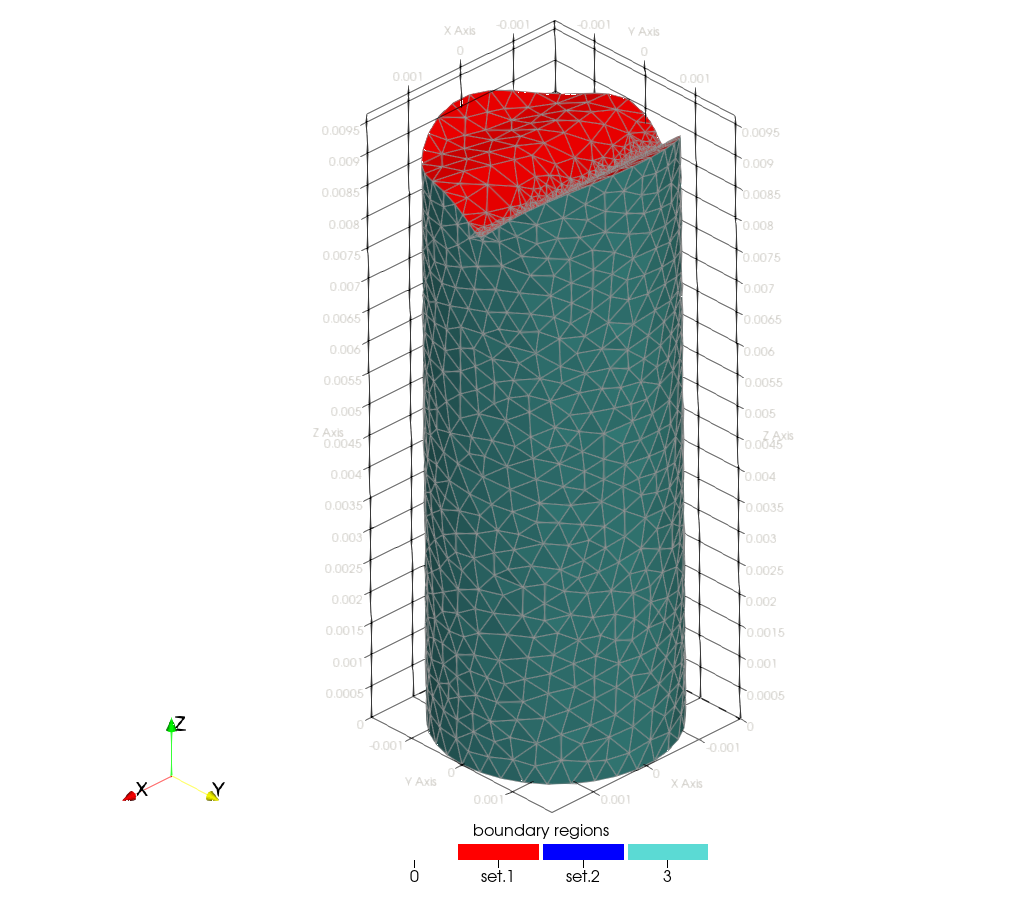

View A |

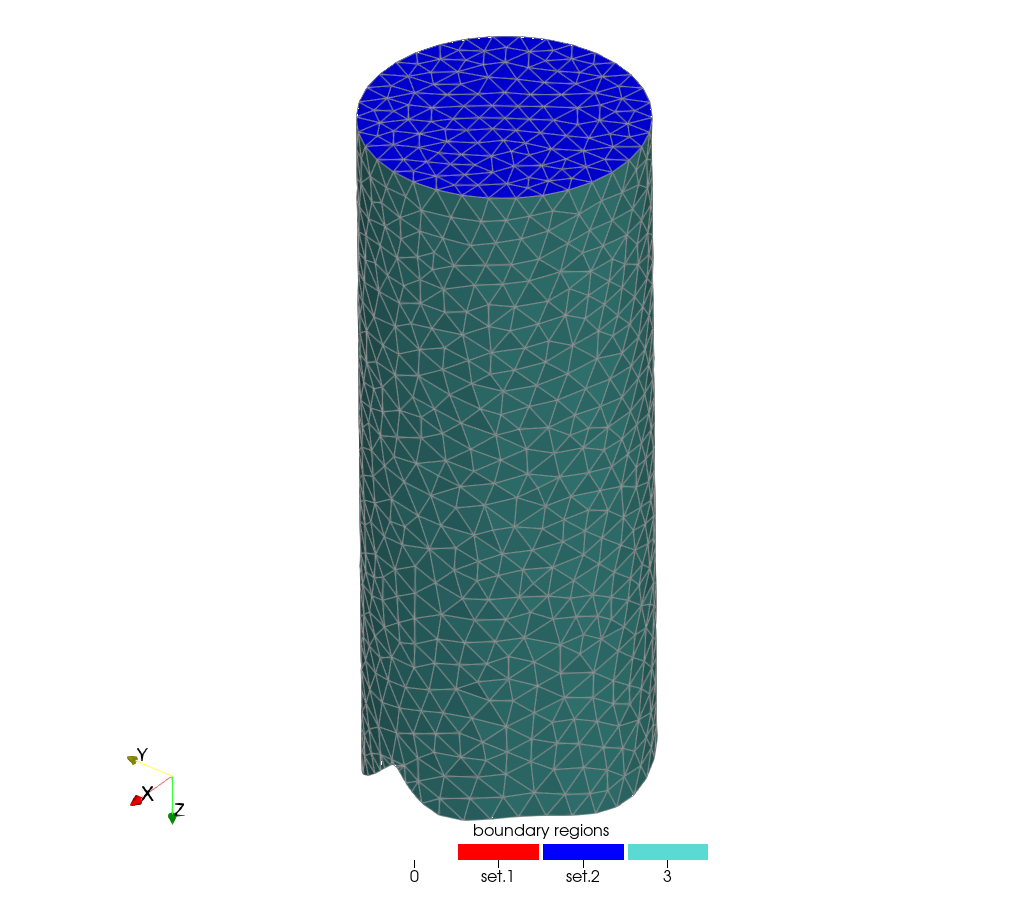

View B |
|---|---|
|
|
