Circular beam with cylindrical top
Volumes
A - Circular beam with a cylindrical top. Base area = 10 mm**2, maximum height of 10 mm.
Surfaces
“set.1” beam top red
“set.2” beam base blue
Mesh
Target element size: 1 mm
Number of elements per circle: 9
528 elements
View A |

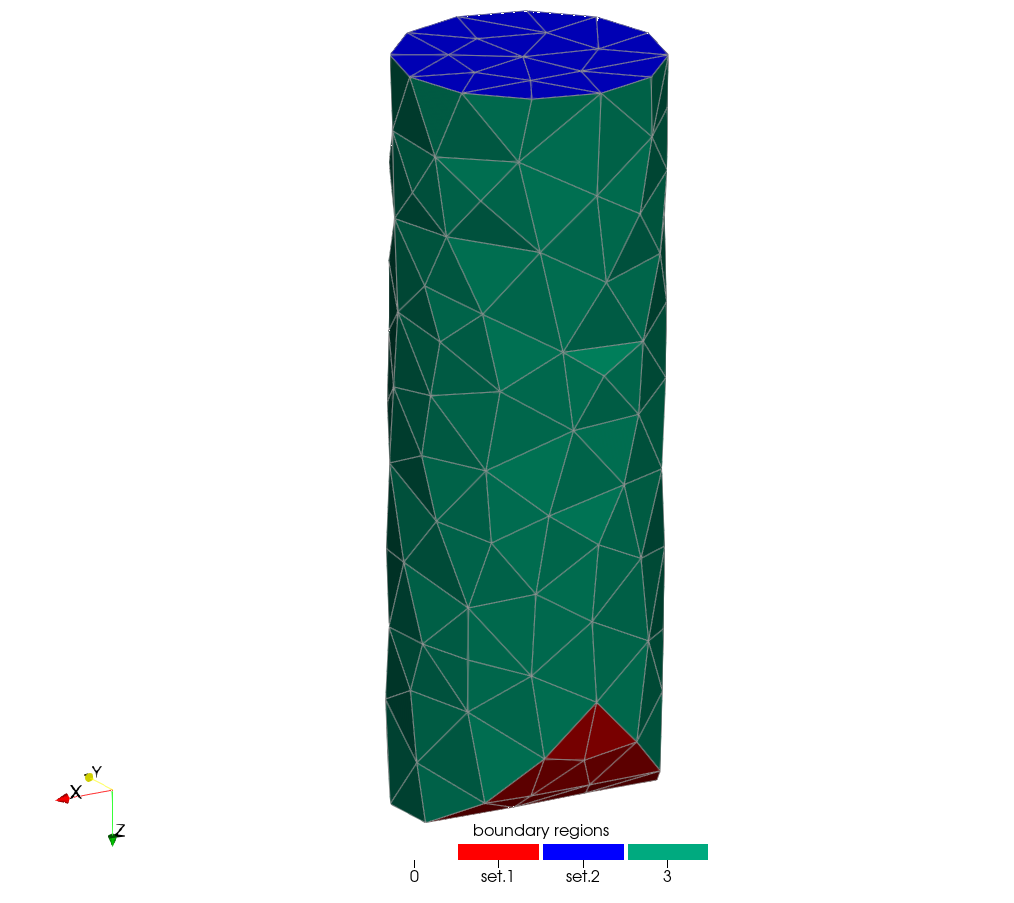

View B |
|---|---|
|
|
