Square beam rotated 18 degrees around the X-axis

Volumes

A - 10x10x40mm beam, center of the base at the origin (0,0,0).

Surfaces

1. “set.1” top of the beam (red)

2. “set.2” base of the beam (green)

Mesh

• Target quality: 10

• 5385 elements

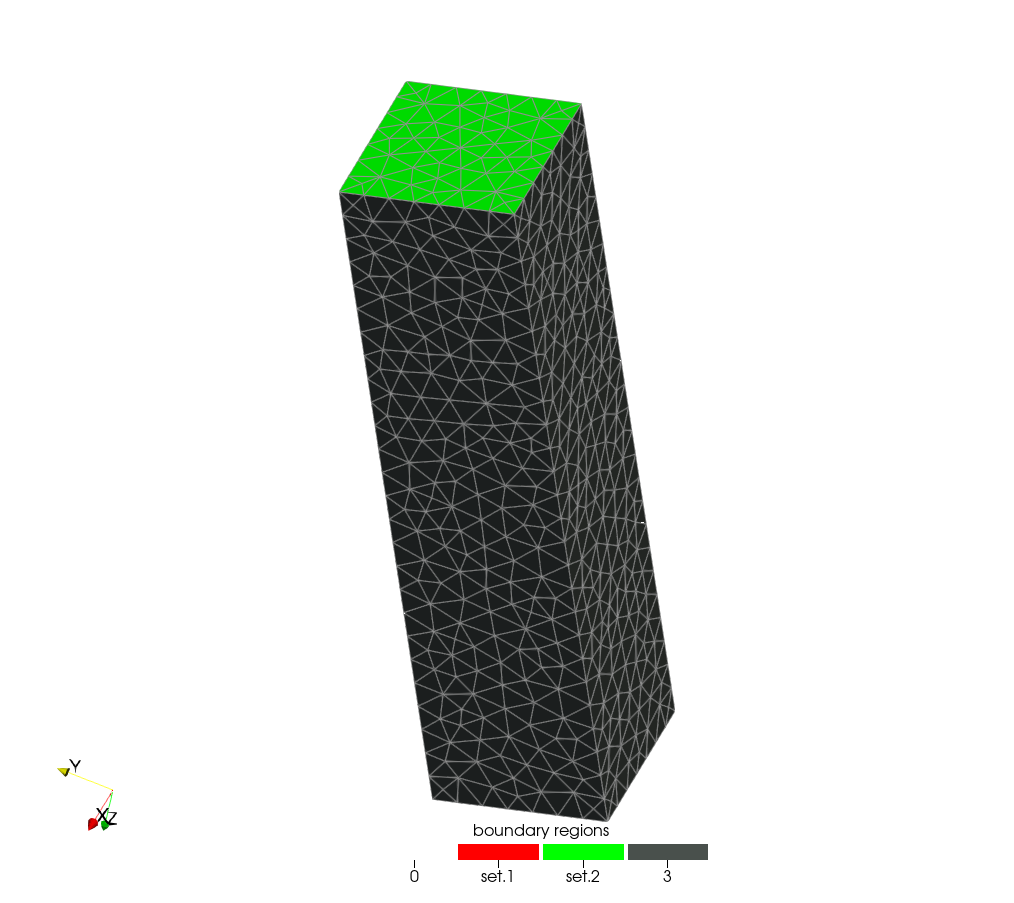

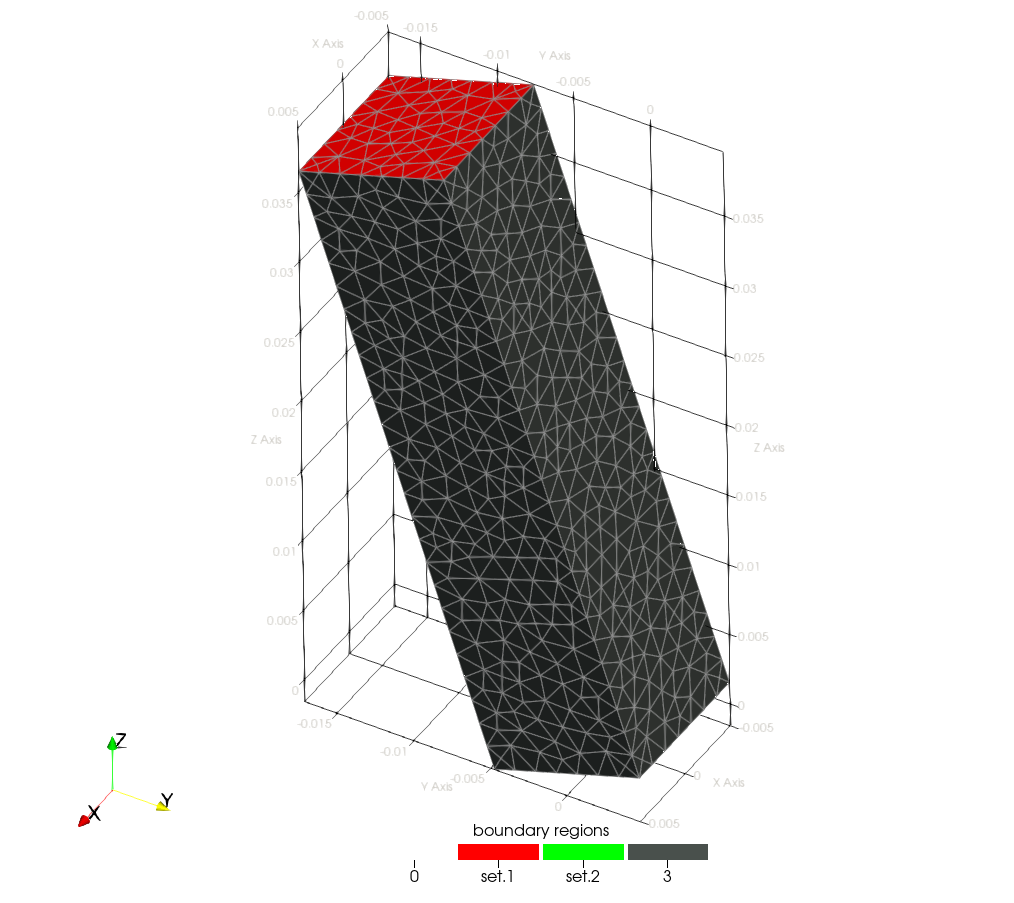

View A	View B
